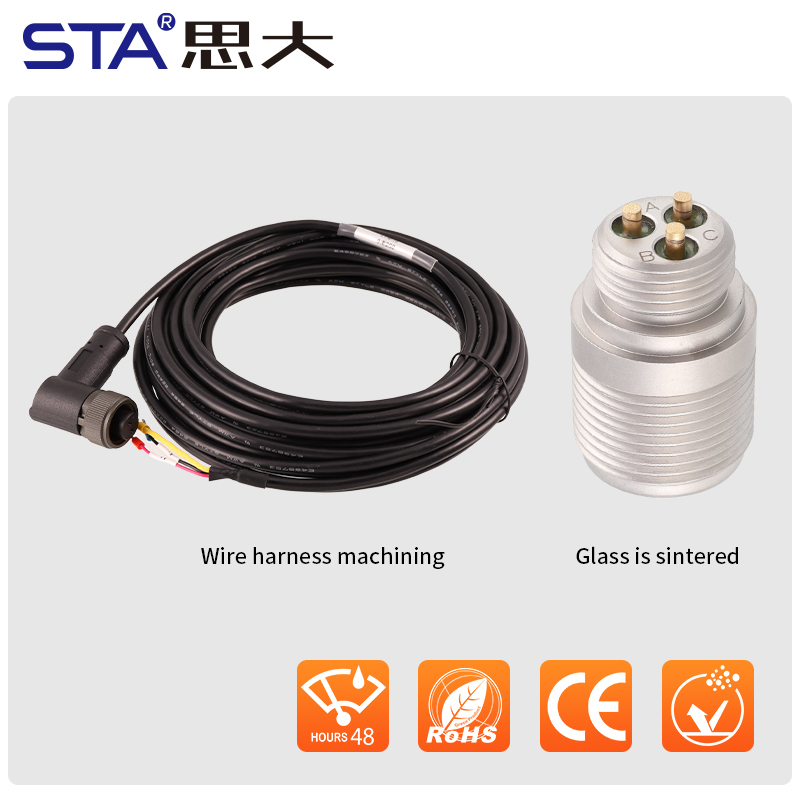

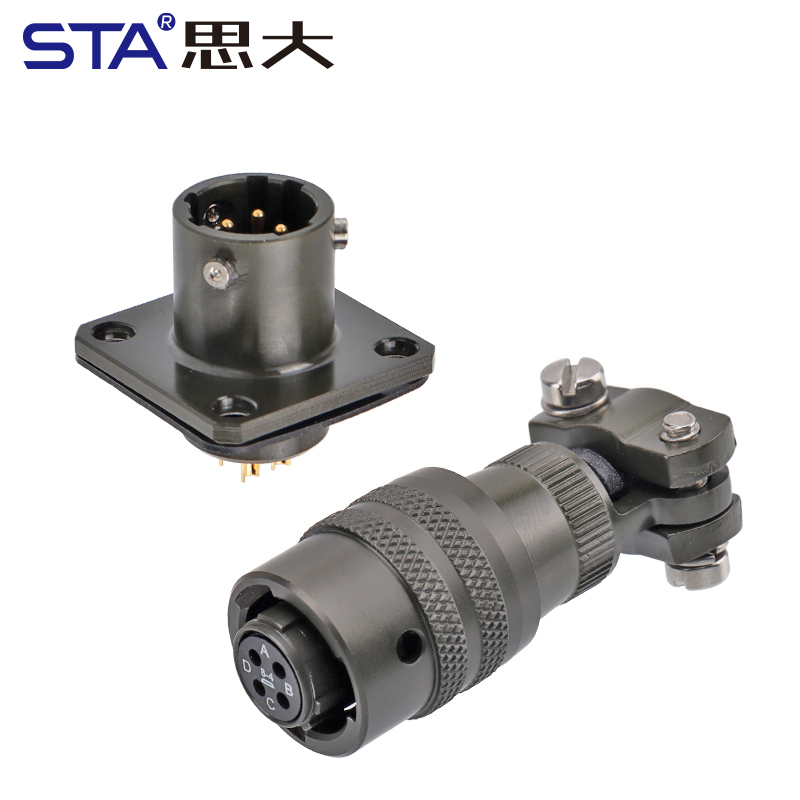

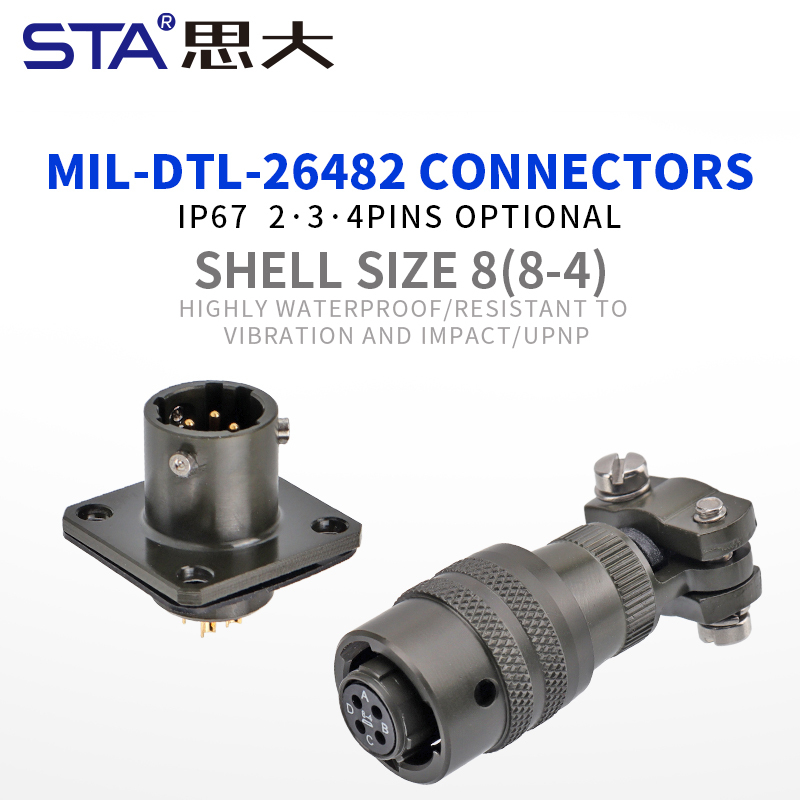

Reliable multi-channel MIL 26482 8 Shell 4-pin system
Provides separate, interference-resistant pathways, ensuring consistent signal integrity in automation, aircraft control, and measurement equipment.
Secure bayonet locking
Fast connection and anti-loosening design prevent failures caused by vibration or repeated handling.
High-strength aluminum housing
The plated exterior resists salt spray, chemicals, and mechanical wear common in outdoor and mobile equipment.
Gold-plated contacts
Maintains low contact resistance and stable electrical performance during long-term service cycles.
Full environmental sealing
IP67 waterproofing with high-performance rubber insulation ensures long-term reliability even in harsh weather and dusty industrial settings.
Plug or Receptacle |
||||||
|
|
|
|
|
|
|
|
|
MS3110(PT00,SP00,PW00,KPT00,85100) – Wall Mounting Receptacle |
MS3111(PT01,PW01,KPT01,85101) – Cable Connecting Plug |
MS3112(PT02,PW02,KPT02,85102E-50) – Box Mounting Receptacle |
MS3114(PT07,PW07,KPT07,85107) – Jam Nut Mounting Receptacle |
MS3114A(PT07A,PW07A,KPT07A,85107A) – Jam Nut Receptacle |
MS3116(PT06,PW06,KPT06,85106) – Straight Plug |
MS3119(PTB) – Thru-Bulkhead Receptacle |
 |
 |
 |
 |
 |
|
A-General duty, threaded back shell |
E-Environmental without Clamp |
F-Grommet seal with strain relief |
J-Environmental with Clamp and Cable Jacket Gland Seal (MS3116 only) |
P- Environmental Potting seal |
 |
||||
|
Angular Positions |
Position W |
Position X |
Position Y |
Position Z |
|
Shell Size 8 |
 |
 |
 |
 |
|
Insert Number: |
8-2 | 8-3 | 8-4 | 8-33 |
|
Number of Contacts: |
2 | 3 | 4 | 3 |
|
Contact Size: |
20 | 20 | 20 | 20 |
| Shell Material: | Aluminum alloy |

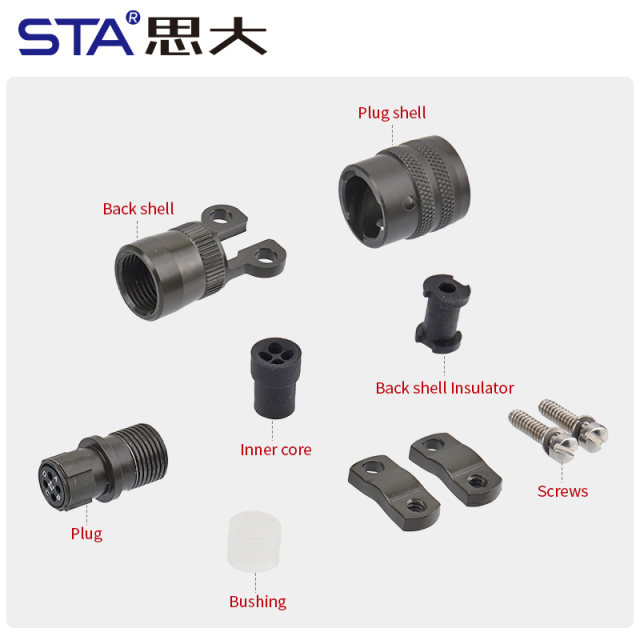

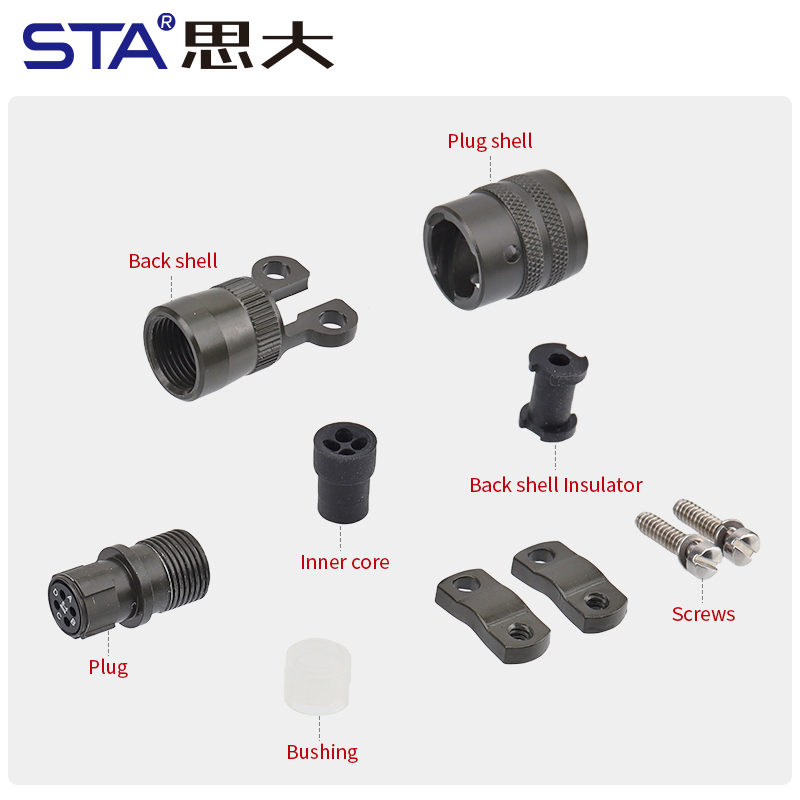

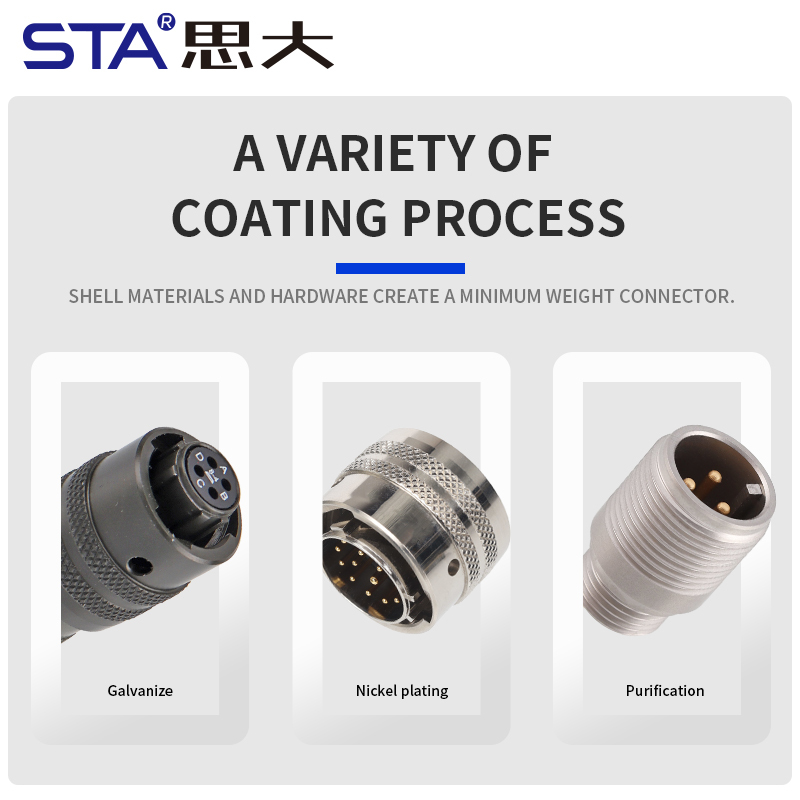

| Shell Plating: | Olive Drab Cadmium/Black Over Zinc Plating |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Plating |
| Insulator Material: | Synthetic rubber |
| Rated voltage: | 600V |
| Rated current: | 7.5A |
| Insulation Resistance: | 5,000 Mega ohms minimum (at 25°C) |
| Contact Resistance: | ≤10 mΩ |
Cross-Reference & Compatibility |
|||||
|
“A” General Duty / “C” Pressurized“ |
“A” (SR), “E” (SR), “P” (SR), MS / “F” Strain Relief |
E” Open Wire Seal |
“P” Potting Boot |
“J” Cable Seal |
“PG” Cable Gland Seal |
| PT00A-8-4S,8-4P SP00A-8-4S,8-4P PT00C-8-4S,8-4P PT01A-8-4S,8-4P PT01A-8-4S,8-4P PT06A-8-4S,8-4P SP06A-8-4S,8-4P PTG06A-8-4S,8-4P PT07A-8-4S,8-4P PT07C-8-4S,8-4P |
PT00A-8-4S,8-4P (SR) SP00A-8-4S,8-4P (SR) PT00E-8-4S,8-4P (SR) SP00E-8-4S,8-4P (SR) PT00P-8-4S,8-4P (SR) SP00P-8-4S,8-4P (SR) MS3110F-8-4S,8-4P PT01A-8-4S,8-4P (SR) PT01E-8-4S,8-4P (SR) PT01P-8-4S,8-4P (SR) MS3111F-8-4S,8-4P PT01A-8-4S,8-4P (SR) PT01E-8-4S,8-4P (SR) PT01P-8-4S,8-4P (SR) MS3111F-8-4S,8-4P PT06A-8-4S,8-4P (SR) SP06A-8-4S,8-4P (SR) PTG06A-8-4S,8-4P (SR) PT06E-8-4S,8-4P (SR) SP06E-8-4S,8-4P (SR) PTG06E-8-4S,8-4P (SR) PT06P-8-4S,8-4P (SR) SP06P-8-4S,8-4P (SR) PTG06P-8-4S,8-4P (SR) MS3116F-8-4S,8-4P PT07A-8-4S,8-4P (SR) SP07A-8-4S,8-4P (SR) PT07E-8-4S,8-4P (SR) MS3114F-8-4S,8-4P |
PT00E-8-4S,8-4P SP00E-8-4S,8-4P MS3110E-8-4S,8-4P PT01E-8-4S,8-4P MS3111E-8-4S,8-4P PT01E-8-4S,8-4P MS3111E-8-4S,8-4P PT06E-8-4S,8-4P SP06E-8-4S,8-4P PTG06E-8-4S,8-4P MS3116E-8-4S, MS3116E-8-4P PT07E-8-4S,8-4P SP07E-8-4S,8-4P MS3114E-8-4S, MS3114E-8-4P |
PT00P-8-4S,8-4P |
MS3110J-8-4S MS3116J-8-4P
|
PT01PG-8-4S |
PT02 (MS3112)SP02 box mounting receptacle |
PT02A-8-4S,PT02A-8-4P SP02A-8-4S,SP02A-8-4P PT02C-8-4S,PT02C-8-4P SP02C-8-4S,SP02C-8-4P |
PT02E-8-4S, PT02E-8-4P, SP02E-8-4S, SP02E-8-4P, MS3112E-8-4S, MS3112E-8-4P |
PT02P-8-4S, PT02P-8-4P, SP02P-8-4S, SP02P-8-4P, MS3112P-8-4S, MS3112P-8-4P |
