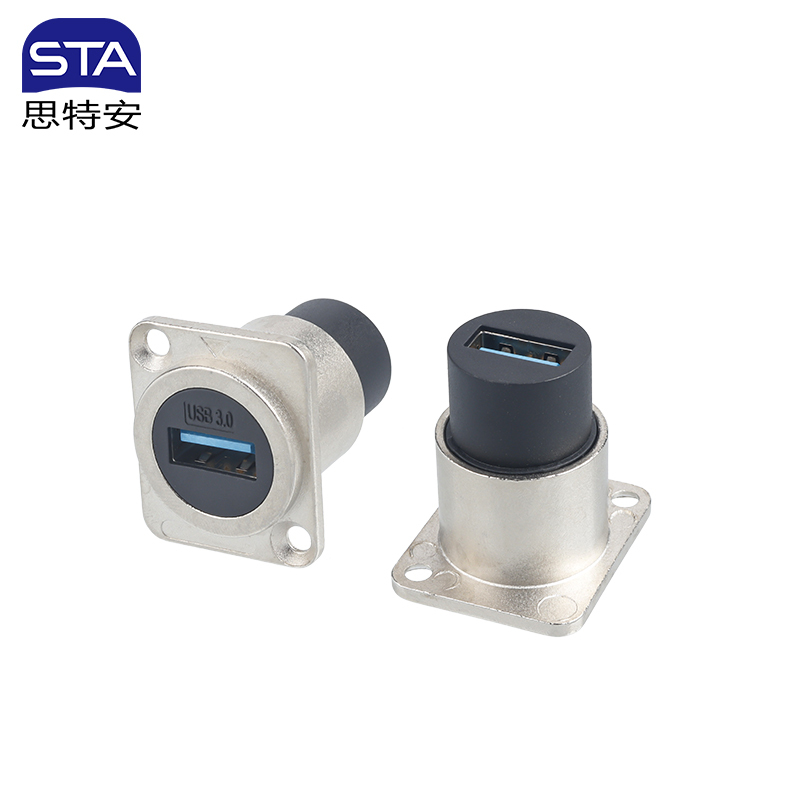

SE USB 3.0 Waterproof Double Female Socket IP65 | Panel Mount
No.SE-USB
SE Series USB 3.0 double female socket (180° outlet) featuring IP65 water protection, durable zinc alloy housing, and snap-lock connection. Ideal for industrial automation panels, data acquisition, and harsh environments. Supports USB 3.0 high-speed data transfer. CE & RoHS certified. Buy direct from the manufacturer.
Model Designation
SE Series USB 3.0 Connector
Type
Double Female Socket (180° Straight Outlet)
Interface Type
USB 3.0 (Compatible USB 2.0)
IP Rating
IP65
Coupling Method
Push-Lock (Snap-fastening)

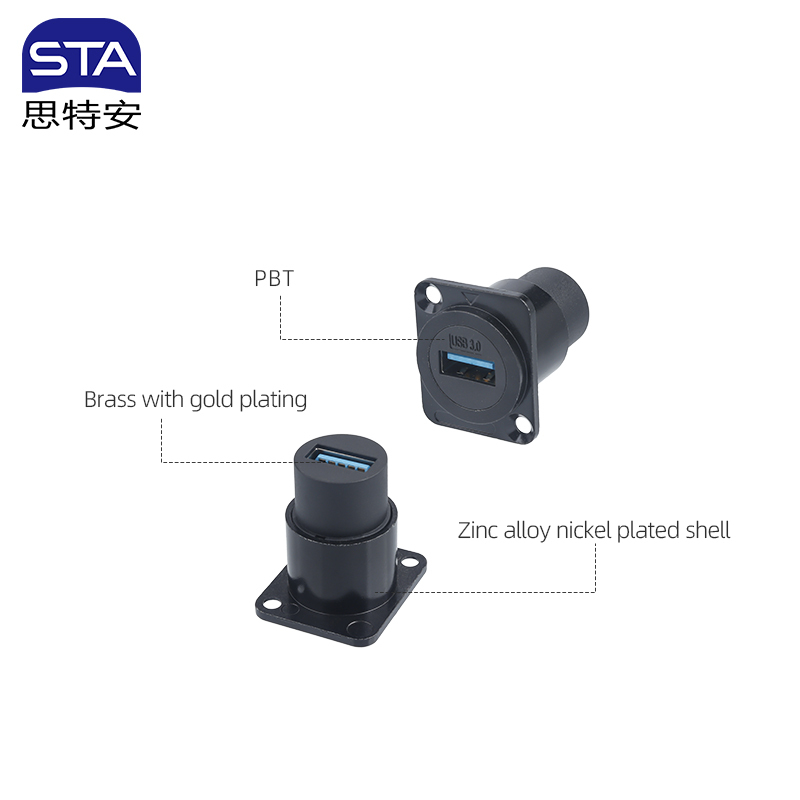

Housing Material
PBT (Fire Resistance: V-0), Zinc Alloy
Contact Material
Brass with Gold Plating
Temperature Range
-25°C ~ +85°C
Connector Type:

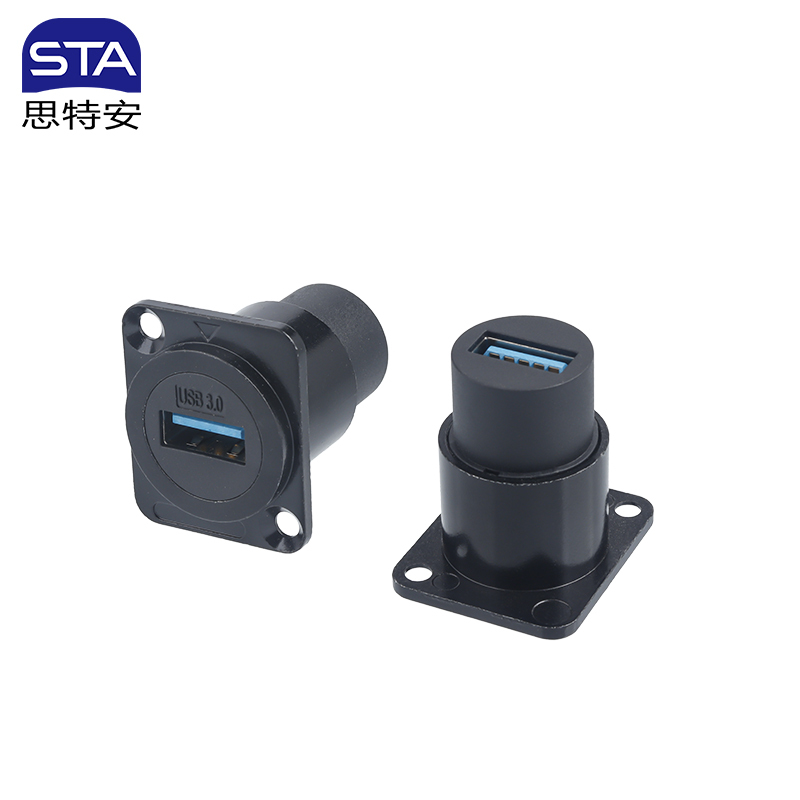

Black USB3.0 Double Female Socket (180 Degree Outlet)
High-Speed USB 3.0 Data Transfer: Engineered to support USB 3.0 standards, ensuring rapid data transfer rates up to 5Gbps, essential for modern peripherals, industrial PCs, and IIoT devices. Rugged IP65 Environmental Protection: The secure snap-lock mechanism and IP65 rating provide reliable protection against dust ingress and low-pressure water jets, ideal for factory floors and exposed industrial panels. Durable Zinc Alloy Shell (EMI Shielded): Features a nickel-plated zinc alloy housing, providing superior electromagnetic shielding (EMI/RFI protection), corrosion resistance, and robust mechanical strength for heavy-duty applications. Dual Female Socket (180° Outlet): The unique back-to-back female coupler design allows for easy, feed-through installation. Simply plug in standard USB cables from both sides, simplifying wiring and maintenance. Reliable Snap-Lock Coupling: The intuitive plug-and-play snap-lock mechanism ensures the connection stays secure against vibration and accidental pulls (Mating cycle: ≥500).

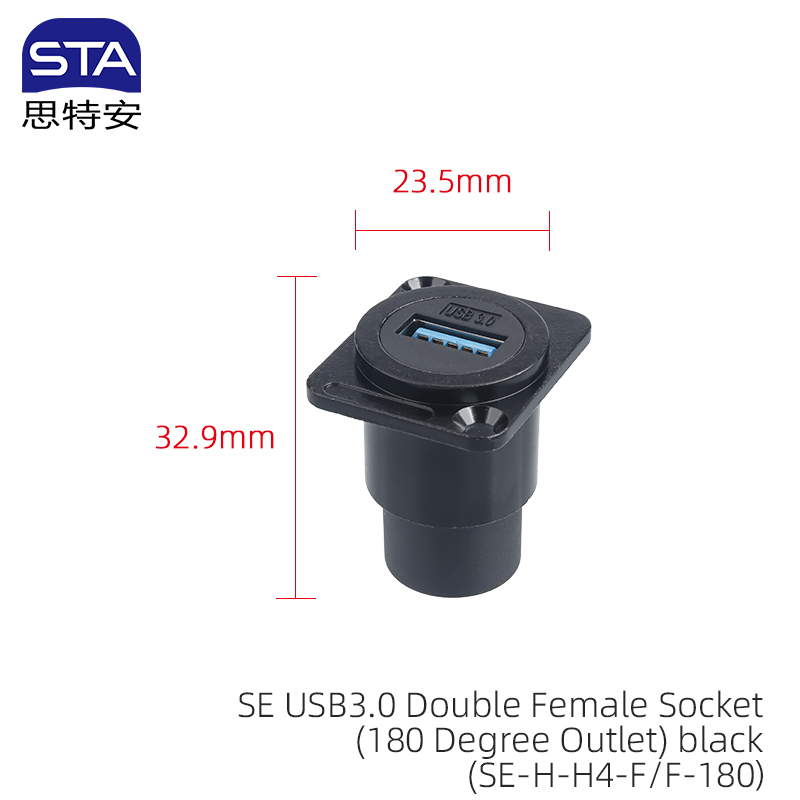

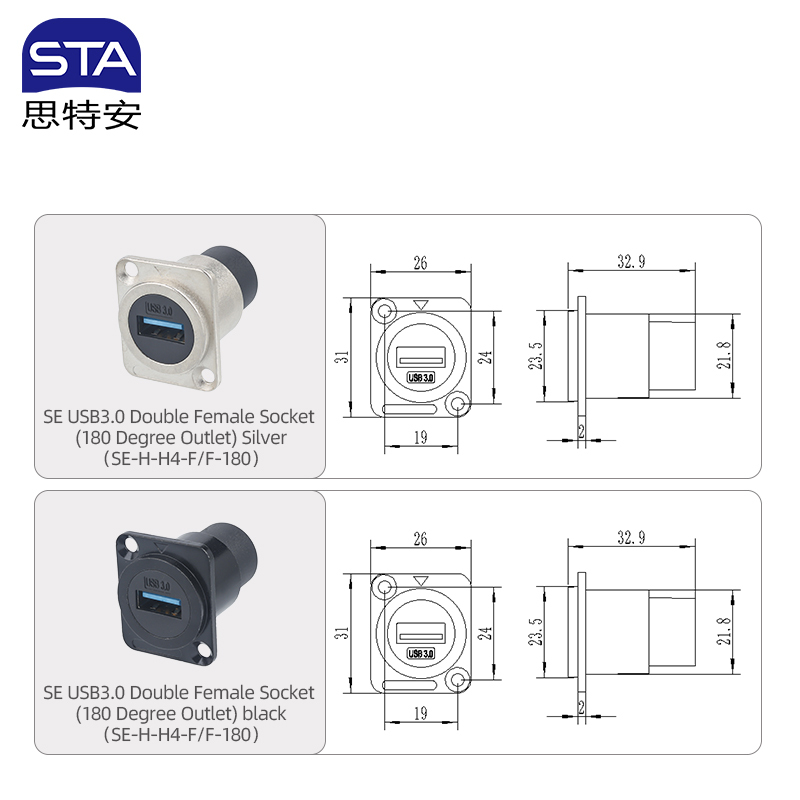

Connetor Drawing
Connector Type
USB2.0
USB3.0
RJ45
HDMI
TYPE-C
FDDI-LC Single Core
FDDI-SC Dual Core
Front view
SE RJ45 Data Type Waterproof Connector
Product Uses
Industrial PCs & HMIs: Provides rugged IP65 USB 3.0 interfaces for connection to industrial panel PCs and Human-Machine Interfaces within factory environments. Data Acquisition Systems: Ensures reliable industrial USB 3.0 panel mount sockets for connecting high-speed data loggers and external storage devices. Automation & Robotics: Offers heavy-duty waterproof USB ports for sensor connectivity and system updates in automated machinery and robotic work cells. Test & Measurement Gear: Utilizes durable industrial USB interfaces for professional testing equipment in workshops and labs. Security Systems: Provides IP65 USB ports for security control panels and data transfer units where dust protection is required.
FAQ
Q1: What is the benefit of the snap-lock mechanism? It allows for quick, simple plug-and-play operation, ensuring the connection is secure with a positive click while offering good vibration resistance compared to standard, non-locking USB ports. Q2: Is this socket backward compatible with USB 2.0 cables? Yes, USB 2.0 cables can be plugged into this USB 3.0 socket, though data transfer speed will be limited to USB 2.0 rates. Q3: What does "Double Female Socket (180° Outlet)" mean? It means the connector has a female USB 3.0 interface on both the front and the back, allowing you to run standard USB cables through a panel simply and effectively (180° refers to the straight cable exit path). Q4: Is the IP65 rating sufficient for outdoor use? IP65 protects against dust and water splashes. It is suitable for sheltered outdoor areas but not for continuous water immersion or heavy rainfall.
