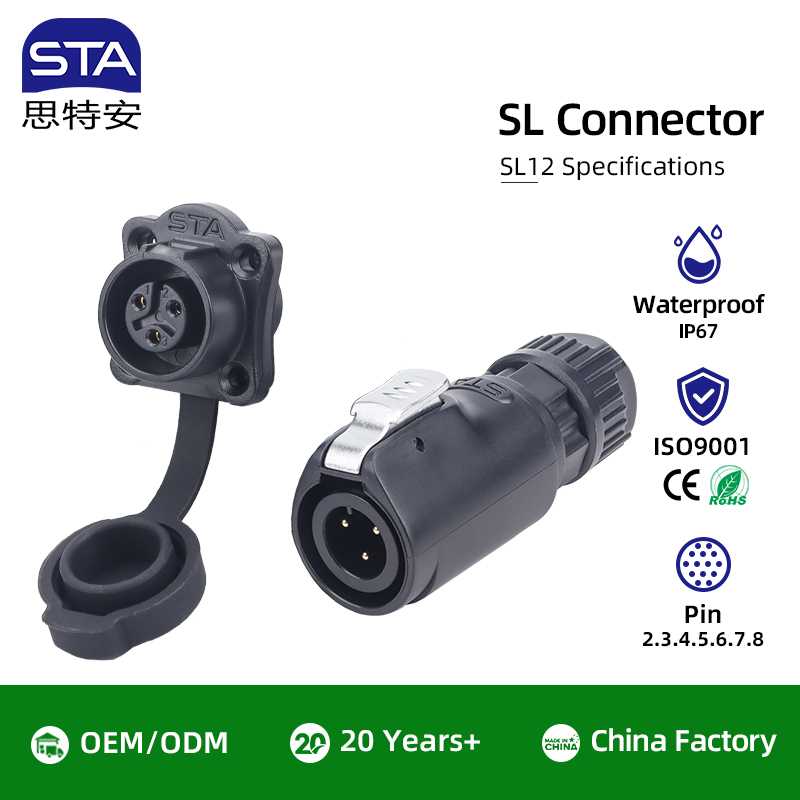

The SL12 IP68 waterproof connector from Shenzhen Sta Electronic is a high-performance interconnect solution designed for demanding environments. Featuring a rugged PBT shell and gold-plated brass contacts, this industrial aviation plug supports 2 to 8 pins for reliable power and signal transmission. With its compact design and V-0 fire resistance, it ensures secure, durable connections in marine, medical, and outdoor lighting applications.

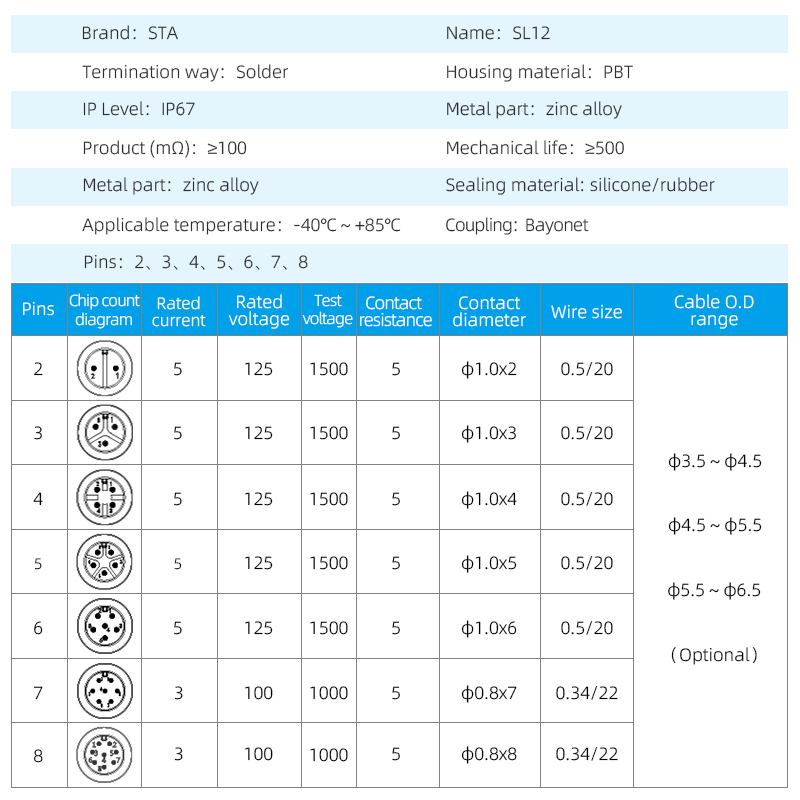

Connector Type
SL12 / LP12 Aviation Plug Connector
Pin Count

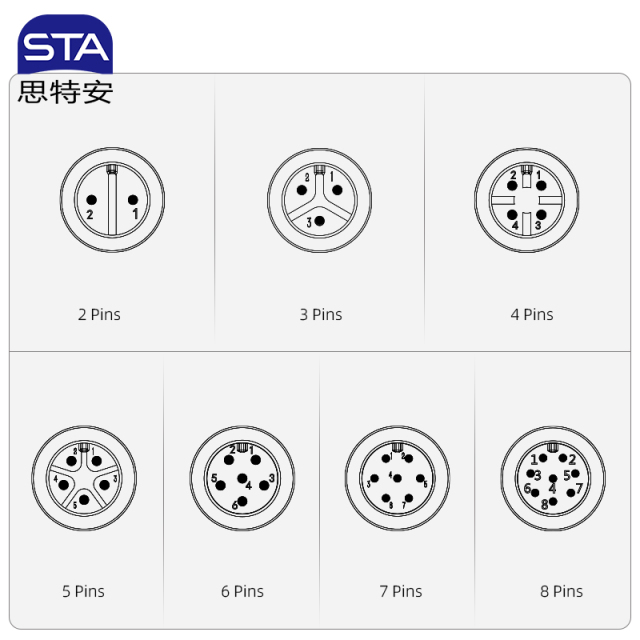

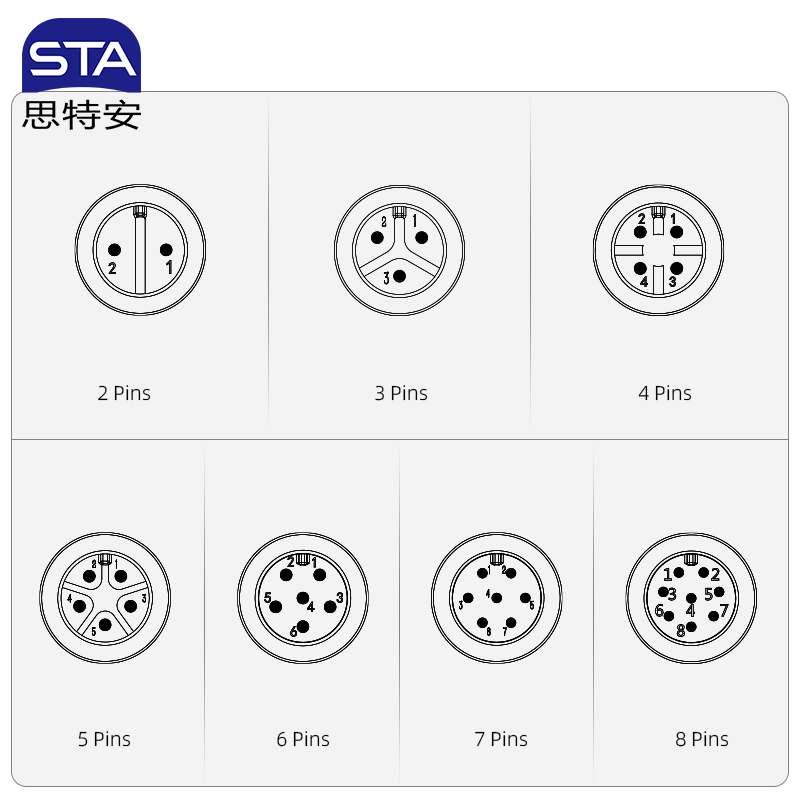

2, 3, 4, 5, 6, 7, 8 Pin
Connect Type

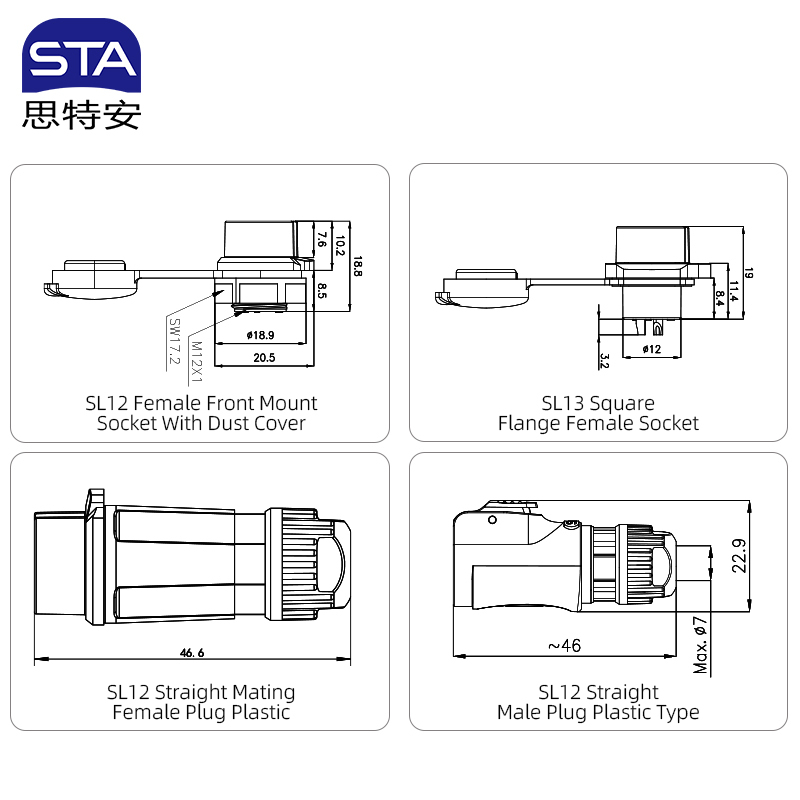

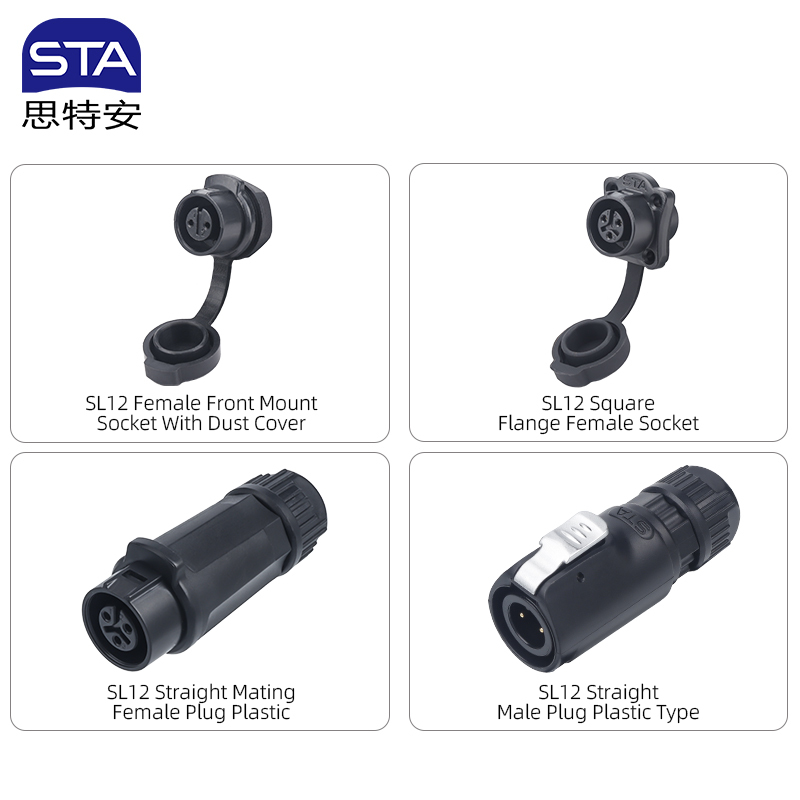

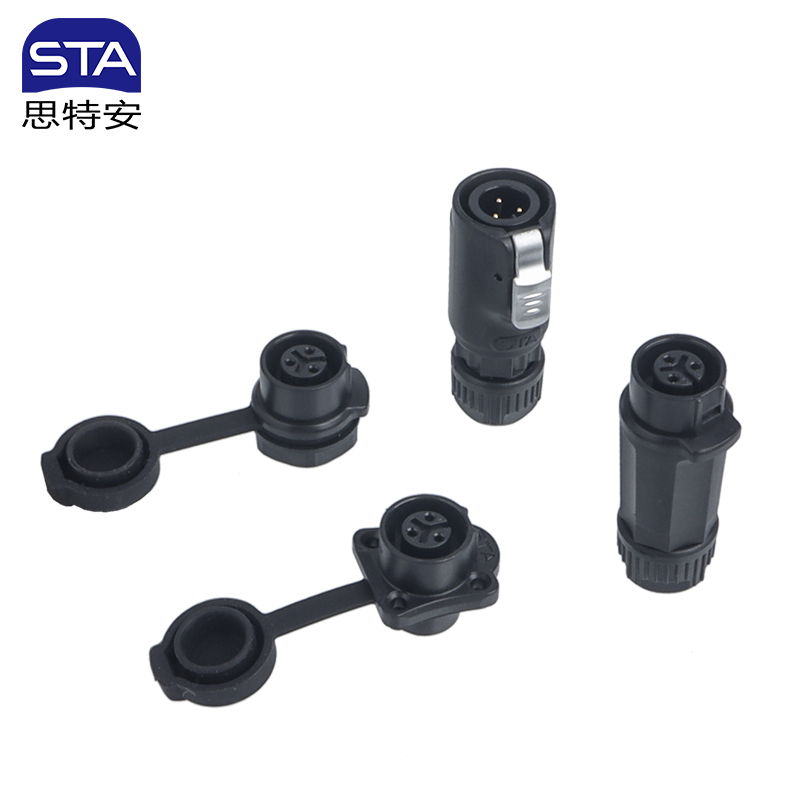

Straight Male Plug, Front Mount Socket, Square Flange Socket
Ultimate IP68 Waterproof Protection:Engineered for excellence, the LP12 series achieves anIP68 rating, ensuring complete dust protection and reliable operation during long-term immersion in water, perfect for outdoor industrial equipment. Versatile Mounting Configurations:Shenzhen Sta Electronicoffers multiple housing types, includingStraight Male Plugs,Square Flange Female Socketsfor rigid mounting, andFront Mount Socketsequipped with integrated dust covers. High-Reliability Solder Termination:This series utilizes asolder terminationmethod exclusively, providing maximum mechanical strength and electrical stability under high-vibration conditions, ensuring your connections remain secure over 500 mating cycles. Durable PBT and Gold-Plated Contacts:The PBT shell provides excellent chemical resistance and insulation, while thegold-plated brass contactsminimize contact resistance (5mΩ) and prevent corrosion in salt-spray or humid environments. Extreme Temperature Resilience:Built to withstand harsh climates, the LP12 connector operates efficiently from-40°C to +85°C, making it the idealminiature circular connectorfor both industrial freezers and high-heat machinery.
SL12/LP12 Waterproof Connector Video
Product Uses
Outdoor LED Lighting Systems:The LP12 is a premierwaterproof cable connectorfor architectural lighting and LED displays, featuring adust coverto protect ports when disconnected. Industrial Automation Sensors:Perfect forminiature circular sensor connectionswhere space is limited but high signal integrity and IP68 protection are mandatory for production lines. Marine and Underwater Electronics:Serves as a reliablemarine-grade electrical connectorfor fish finders, sonar equipment, and boat navigation systems exposed to salt water. Medical Diagnostic Equipment:Used in portable medical devices due to its chemical-resistant PBT shell and stablegold-plated contactperformance during frequent usage. Outdoor Security Surveillance:Ensures continuous power forIP68 security cameras, protecting sensitive electrical components from humidity, rain, and dust ingress.
FAQ
Q1: What is the benefit of the Square Flange Socket in the SL12 / LP12 series? A1: The Square Flange Female Socket allows for a secure 4-screw installation on panels, providing superior stability for heavy-duty industrial machinery subject to constant vibration. Q2: Does the SL12 / LP12 connector come with a dust cover? A2: Yes, the Front Mount Female Socket from Shenzhen Sta Electronic is available with a dedicated dust cover to maintain its IP68 integrity when not in use. Q3: Is the SL12 / LP12 series compatible with large-diameter cables? A3: The LP12 series is optimized for compact cables with an outer diameter (O.D.) up to 6.5mm. Q4: Can I use the SL12 / LP12 connector for both power and data? A4: Absolutely. With its low contact resistance and multi-pin (up to 8 pins) design, it is ideal for both low-voltage power distribution and sensitive signal transmission.
